The Ultimate Guide To Concrete Scarifiers

Everything You Need To Know About Concrete Scarifiers

A concrete scarifier—also called a concrete planer or milling machine—is a heavy-duty surface preparation tool designed to aggressively remove material from the top layer of a concrete slab. It uses a fast-rotating drum equipped with hardened tungsten carbide cutters to chip, plane, and mill the surface with precision. This mechanical action removes concrete far more effectively than standard grinding and produces a deeply textured profile.

Scarifiers are ideal for applications such as resurfacing damaged slabs, creating grooves for slip-resistance, removing coatings or adhesives, eliminating high spots and trip hazards, and preparing concrete for new flooring, epoxy coatings, line marking, or waterproofing systems.

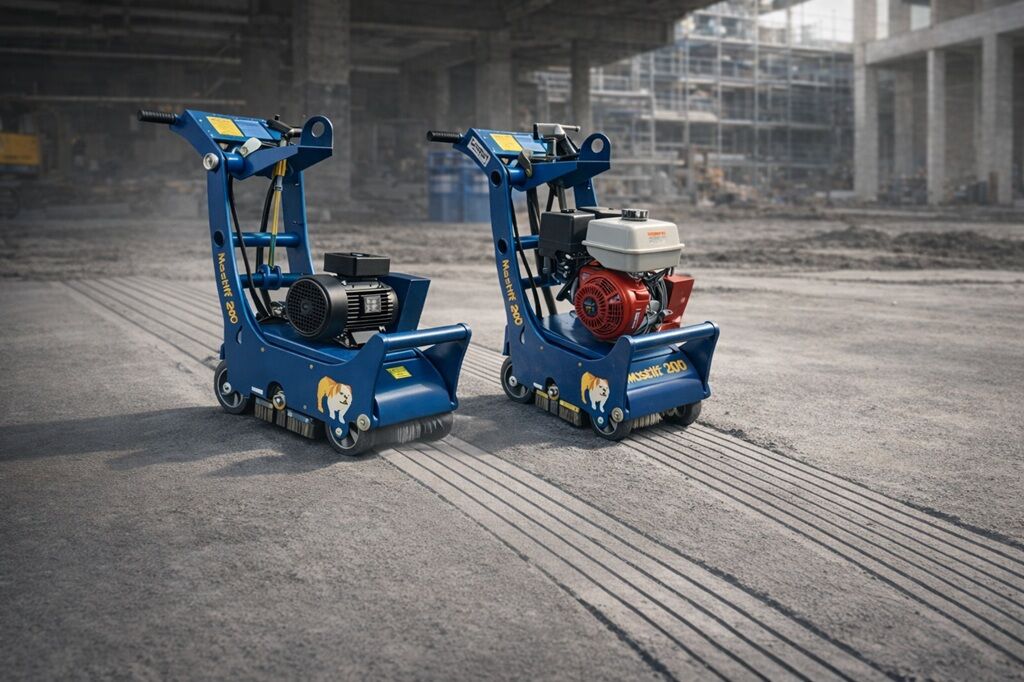

This is the ELECTRIC 240V version being discussed in this guide:
240V 200MM (8IN) CONCRETE PLANER

There is also a PETROL version, which is more powerful:
CONCRETE PLANER – 200MM (8IN) PETROL HEAVY DUTY

How To Use A Concrete Scarifier

xxxxxxxxxxx

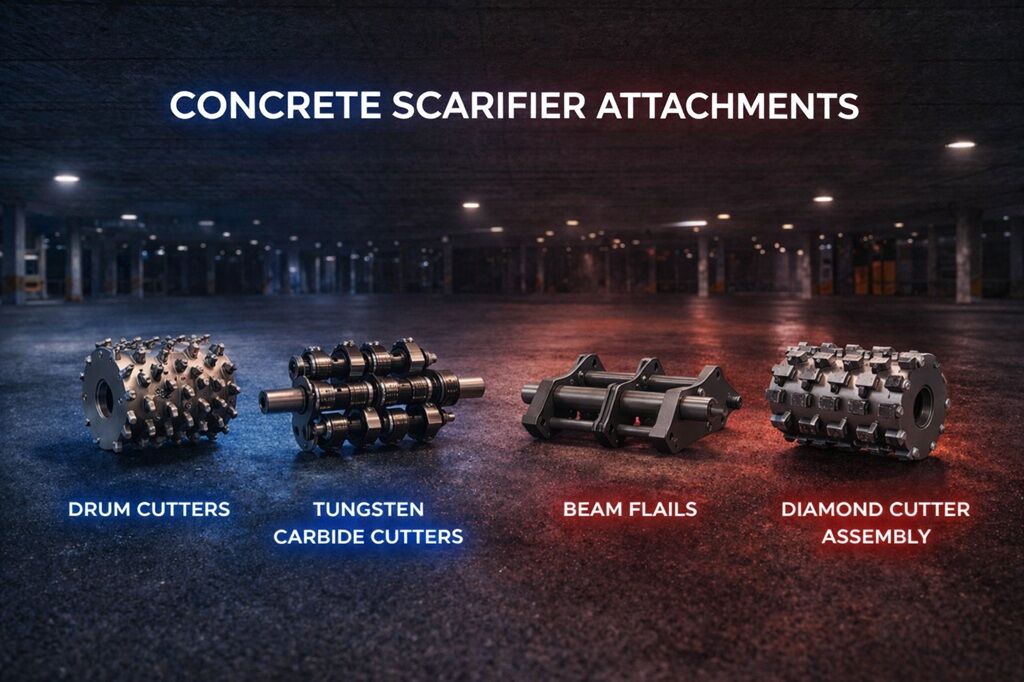

Cutter / Attachment Types Used On Concrete Scarifiers

Below, we will list the 4 different attachments that can be used and what they should be used for.

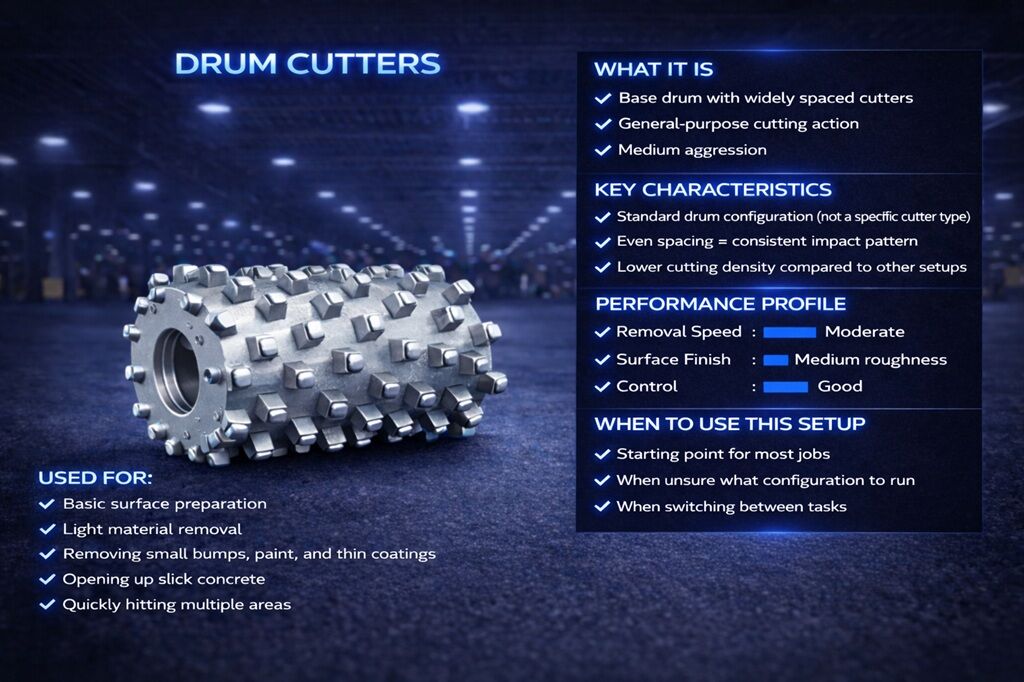

DRUM CUTTERS

– Medium aggression
– General-purpose cutting action
– Base drum with widely spaced cutters

USER FOR:
– Basic surface prep
– Light material removal

PERFORMANCE PROFILE:
Control: Good
Removal Speed: Moderate
Surface Finish: Medium roughness

– Not a specific cutter type — this is a standard drum configuration

TUNGSTEN CARBIDE CUTTERS (TCT)

– Durable carbide tips
– Balanced performance
– Most common cutter type

USER FOR:
– Everyday jobs
– General scarifying
– Glue/Coating removal

PERFORMANCE PROFILE:
Control: Very good
Removal Speed: Moderate to Fast
Surface Finish: Medium to Rough

– The industry standard — best all-round option for most jobs

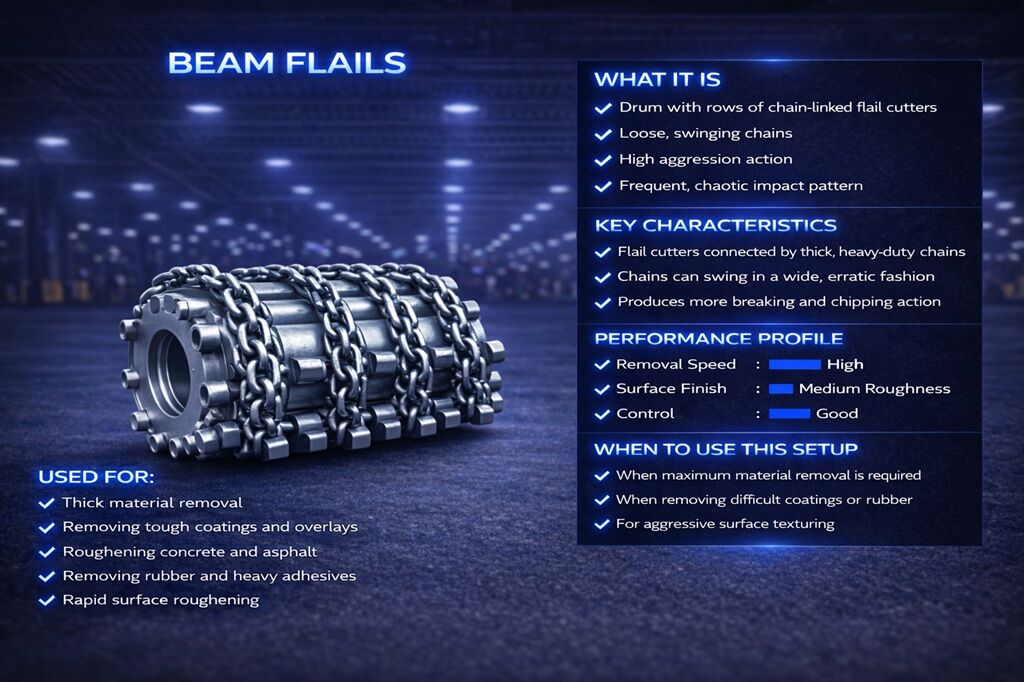

BEAM FLAILS

– Fast material removal
– High aggression per hit
– Heavy, swinging impact cutters

USER FOR:
– High spots
– Thick coatings
– Heavy-duty removal

PERFORMANCE PROFILE:
Control: Moderate
Removal Speed: Fast
Surface Finish: Rough / Grooved

– Leaves a rough, grooved finish

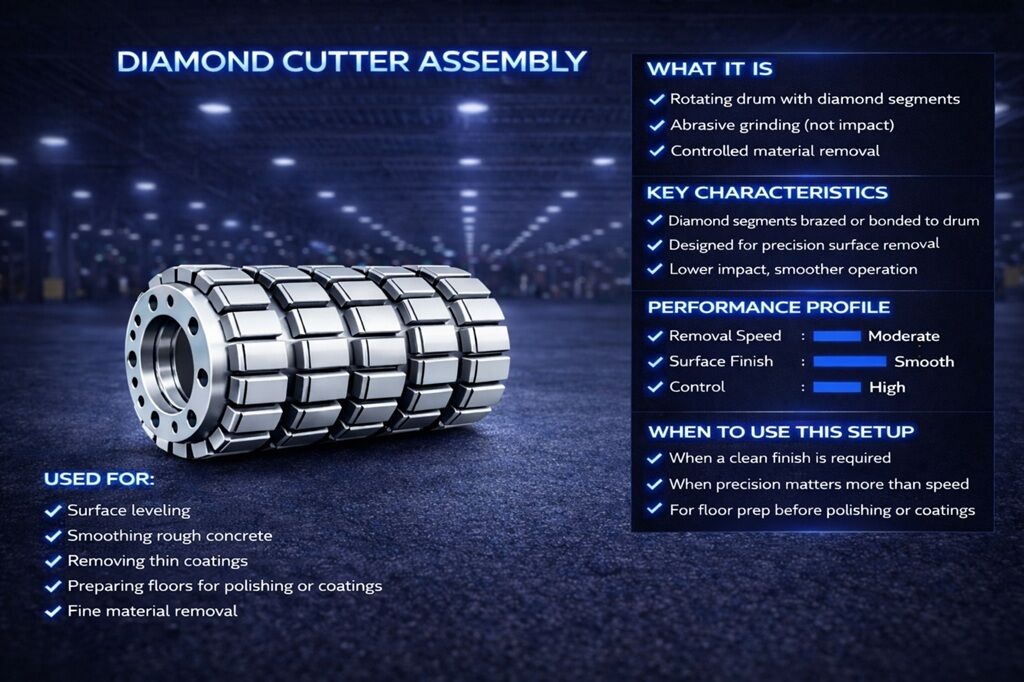

DIAMOND CUTTER ASSEMBLY

– Cleaner, more uniform finish
– Abrasive grinding-style cutting
– More controlled than impact cutters

USER FOR:
– Smoother profiles
– Surface refinement
– Prep before coatings or polishing

PERFORMANCE PROFILE:
Control: Excellent
Removal Speed: Slow to Moderate
Surface Finish: Smooth / Uniform

– Slower but more precise
– Not designed for heavy removal

Real Performance Capability

This information is regarding the following tools:
240V 200MM (8IN) CONCRETE PLANER & CONCRETE PLANER – 200MM (8IN) PETROL HEAVY DUTY

Depth Per Pass:
1–4mm Realistic

Removal Rate:
Fast for Coatings
Moderate for Concrete

Finish:
Grooved / Lined

ABSOLUTE LIMITS

2–5mm Removal → Excellent
5–10mm Removal → Slow
10–20mm Removal → Inefficient (Possible)
20mm+ → Wrong Tool → Side Chiselling with a Jackhammer = Better Option

HOW IT INTERACTS WITH CONCRETE

Concrete isn’t uniform:

HARD Aggregate Areas:
– Slower Removal
– More Vibration

SOFT Paste Areas:
– Faster Removal
– Can Gouge Easily

RESULTS:
You NEVER get perfectly even removal in one pass

WHY THIS MATTERS:

That’s why:
Multiple Passes = Essential

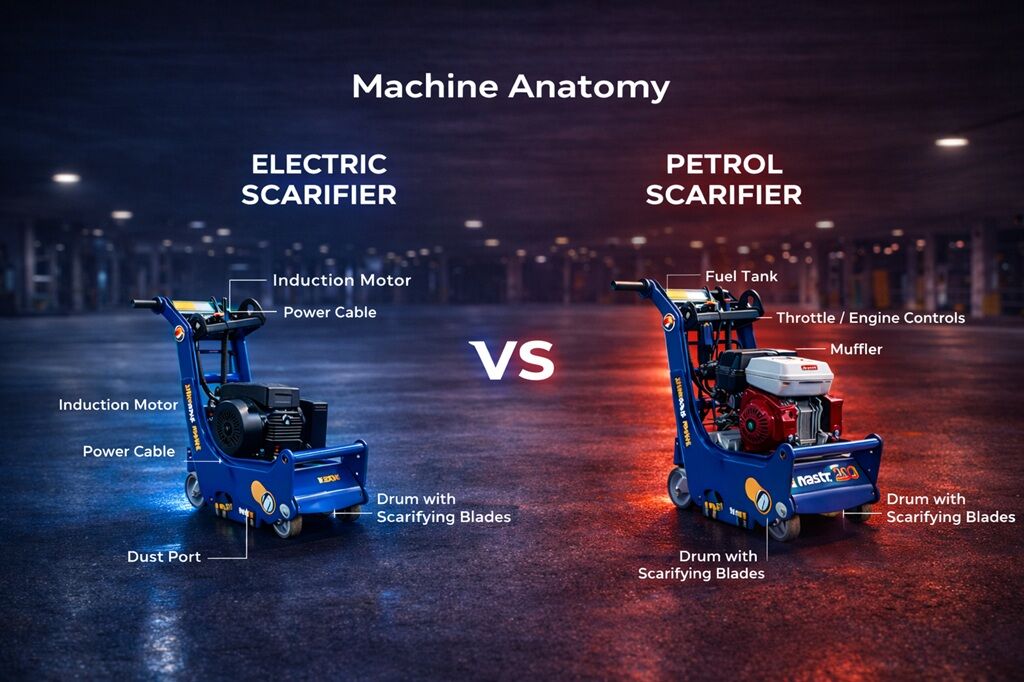

Machine Anatomy (THIS EXACT UNIT)

xxxxxxxxxxxxxxx

Critical Finishing Stage – After Using A Concrete Scarifier

xxxxxxxxxxxxxxx

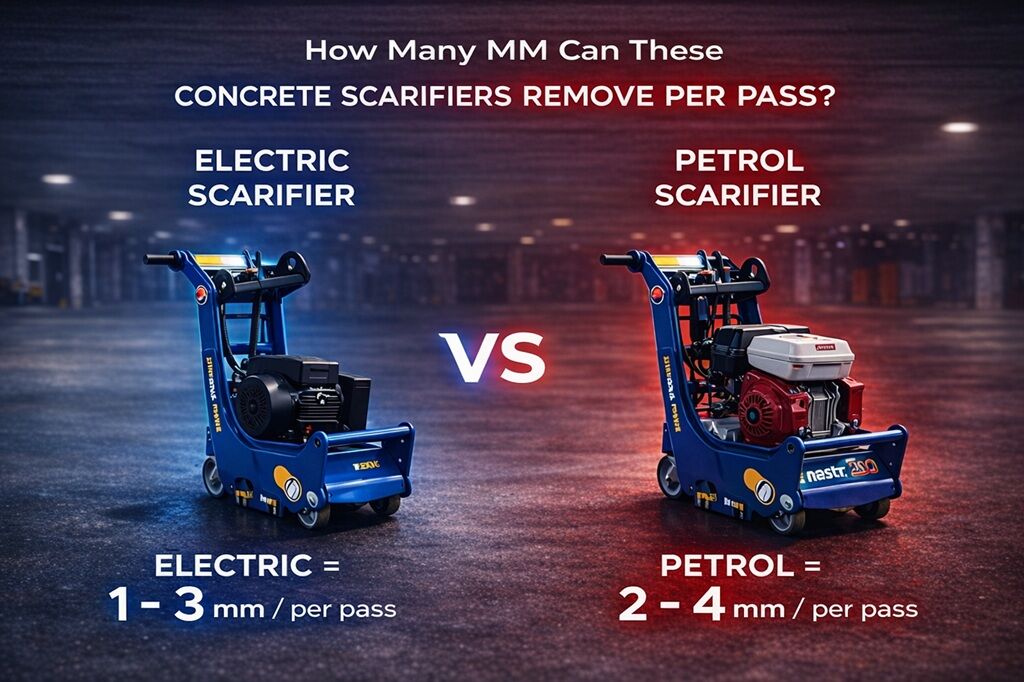

How Many MM Can These Concrete Scarifiers Remove Per Pass?

ELECTRIC = 1 – 3 mm / per pass

PETROL = 2 – 4 mm / per pass

How Many MM Can Concrete Scarifiers Remove Per Pass (Small – Industrial Machines)

The amount of material a concrete scarifier can remove in a single pass depends on the machine size, cutter type, drum speed, and the hardness of the concrete. In general, a commercial-grade scarifier can remove between 1 mm and 6 mm per pass, while heavy-duty industrial units can cut even deeper when required.

What Is The Typical Scarifier Removal Depths Per Pass?

Below, we will go into depth on how deep a scarifier can cut:

Light Scarifying / Surface Texturing:
1–2 mm / per pass
Ideal for creating a Concrete Surface Profile (CSP) for coatings, epoxy, waterproof membranes, or slip-resistant finishes.

Medium Removal (Coatings, Adhesives, High Spots):
2–4 mm / per pass
Suitable for epoxy removal, line marking removal, glue stripping, and general surface correction.

Heavy Milling / Deep Concrete Removal:
4–6 mm / per pass
Used for removing damaged concrete, thick coatings, major high spots, or preparing slabs for resurfacing and levelling.

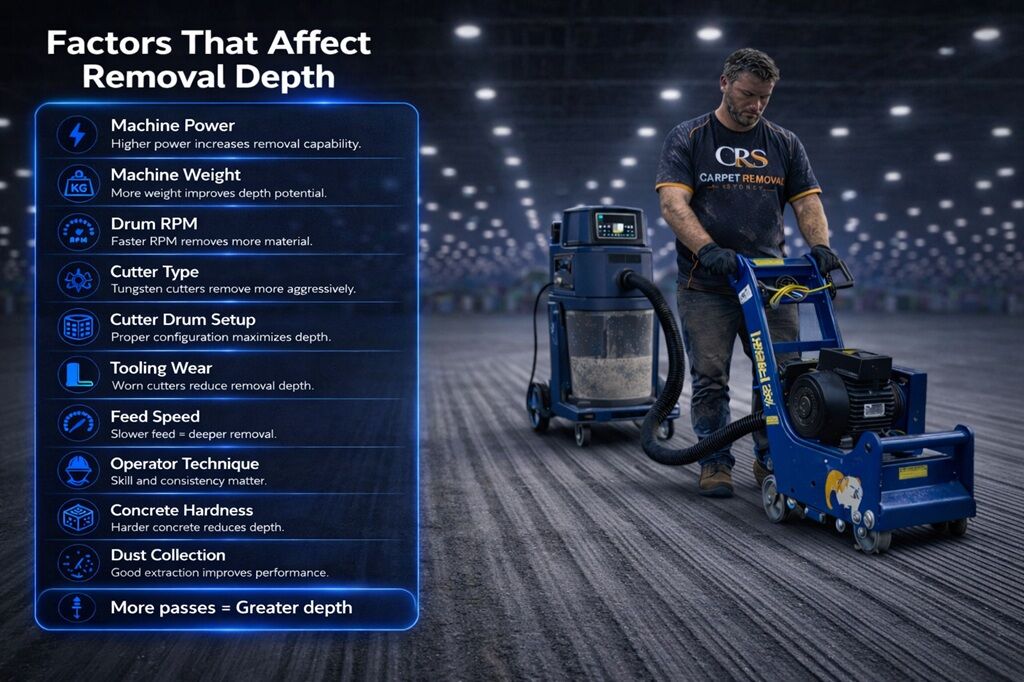

Factors That Affect Removal Depth

The following factors dramatically affect how many MM the scarifier will remove per pass:

– Machine weight and power
– Operator speed and number of passes
– Cutter type (tungsten carbide, milling wheels, flails)
– Desired CSP rating (CSP 3–6 typically requires deeper cuts)
– Concrete hardness – MPa – (harder slabs remove less per pass)

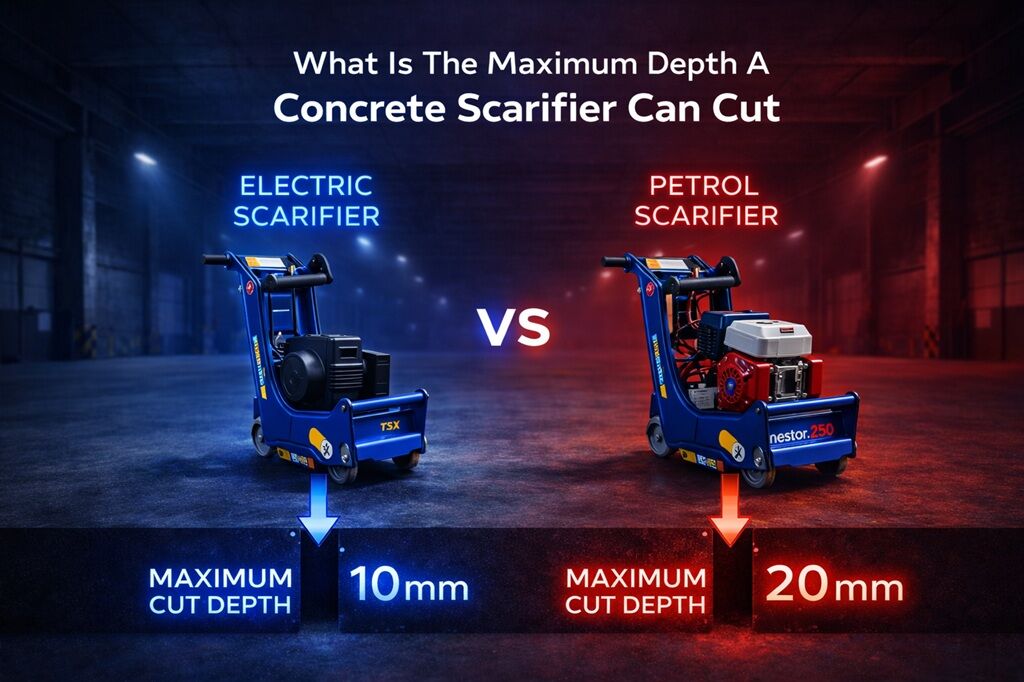

What Is The Maximum Depth A Concrete Scarifier Can Cut

Heavy-duty industrial scarifiers can remove up to 10 mm or more / per pass. Possible in very soft material, but:

– High risk of gouging
– Extremely rough finish
– No control over flatness

Why Is My Concrete Scarifier Vibrating, Bumping, Chattering Or Bouncing?

If your concrete scarifier is vibrating, bumping, chattering, or bouncing, it’s usually a sign that something in the setup, surface, or machine condition needs adjustment.

While some vibration is normal (scarifiers use impact cutting), Excessive vibration is not and should be corrected.

Cutting Too Deep (Most Common Cause)

Scarifiers remove material by impacting the surface with rotating cutters.
If the cutting depth is set too aggressively:

– Control becomes difficult
– The cutters hit the concrete too hard
– The machine begins to bounce or “hop”

How To Fix It:
– Increase depth gradually
– Start with a shallow depth of 0.5–1 mm per pass
– Avoid dropping the drum straight onto the surface

Uneven Concrete Surface

Concrete is not uniform. You’ll encounter:
– Soft Paste Zones → Faster Cutting, Potential Gouging
– Hard Aggregate Zones → Slower Cutting, More Vibration

This causes the machine to feel inconsistent or “grabby.”

How To Fix It:
– Use multiple shallow passes
– Maintain a steady walking pace
– Apply a cross-hatch technique (second pass in the opposite direction)

Worn Or Uneven Cutters

The cutter drum must be balanced. Problems such as:
– Missing cutters
– Uneven spacing
– Flat or worn cutting edges

will cause the machine to vibrate heavily.

How To Fix It:
– Inspect the drum regularly
– Ensure cutters are evenly distributed
– Replace cutters as a complete set, not individually

xxxxxxxxxxxxx

Machine Not Level

If the scarifier isn’t sitting evenly:

• One side cuts deeper than the other
• The machine rocks or pulls sideways

How To Fix It:

• Check both sides of the height adjustment
• Keep the machine flat on the surface
• Avoid applying uneven pressure while operating

xxxxxxxxxxxxx

Incorrect Operating Speed

Operating speed directly affects performance:

• Too slow: cutters repeatedly hit the same spot → excessive vibration
• Too fast: machine skips across the surface → bouncing

How To Fix It:

• Maintain a consistent, controlled walking pace
• Let the machine do the work—don’t force it

xxxxxxxxxxxxx

Using The Wrong Machine For The Job

Scarifiers have limits. Excessive vibration can occur when attempting:

• Deep removal (10 mm+)
• Thick or heavy coatings
• Very hard concrete

How To Fix It:

• Use a more powerful unit (e.g., petrol) for heavy work
• Complete removal in multiple passes
• Consider switching to a grinder for finishing or refinement

xxxxxxxxxxxxx

Mechanical Issues

Mechanical faults can cause severe or irregular vibration:

• Worn bearings
• Loose drum components
• Damaged shafts
• Slipping or worn belts

How To Fix It:

• Stop the operation immediately
• Inspect the machine or arrange servicing
• Do not continue using a faulty unit

xxxxxxxxxxxxx

What Level Of Vibration Is Normal?

Scarifiers are designed to vibrate—but only to a controlled degree.

xxxxxxxxxxxxx

Quick Troubleshooting Checklist

Before continuing work, check the following:

• Set cutting depth to 1 mm or less
• Perform a short test pass
• Inspect cutters for wear and balance
• Ensure the machine is level
• Maintain a steady operating speed

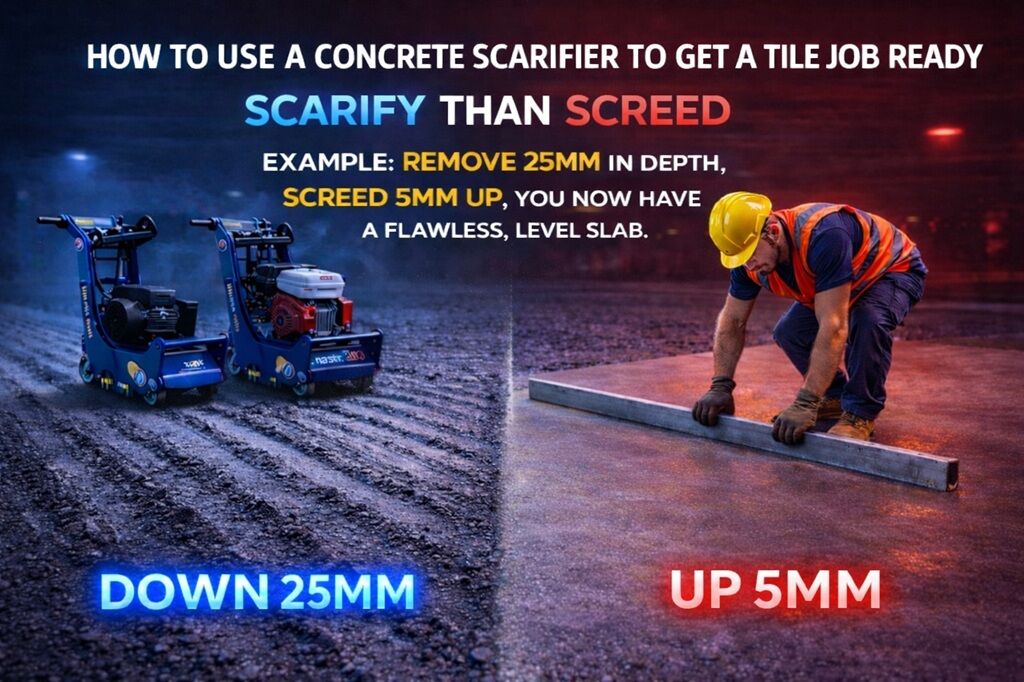

How To Use A Concrete Scarifier To Get A Tile Job Ready

Scarify than Screed
EXAMPLE: remove 25mm in depth, screed 5mm up, you now have a flawless, level slab.

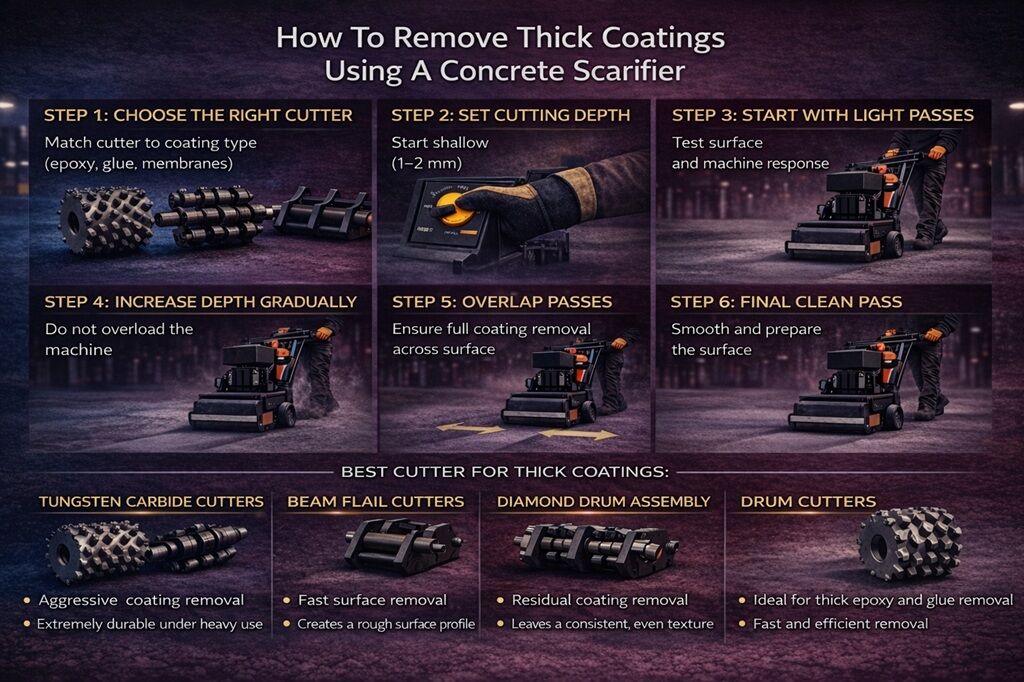

How To Remove Thick Coatings Using A Concrete Scarifier

xxxxxxxxxxxxxxx

How To Shave Concrete Using A Concrete Scarifier

xxxxxxxxxxxxxxx

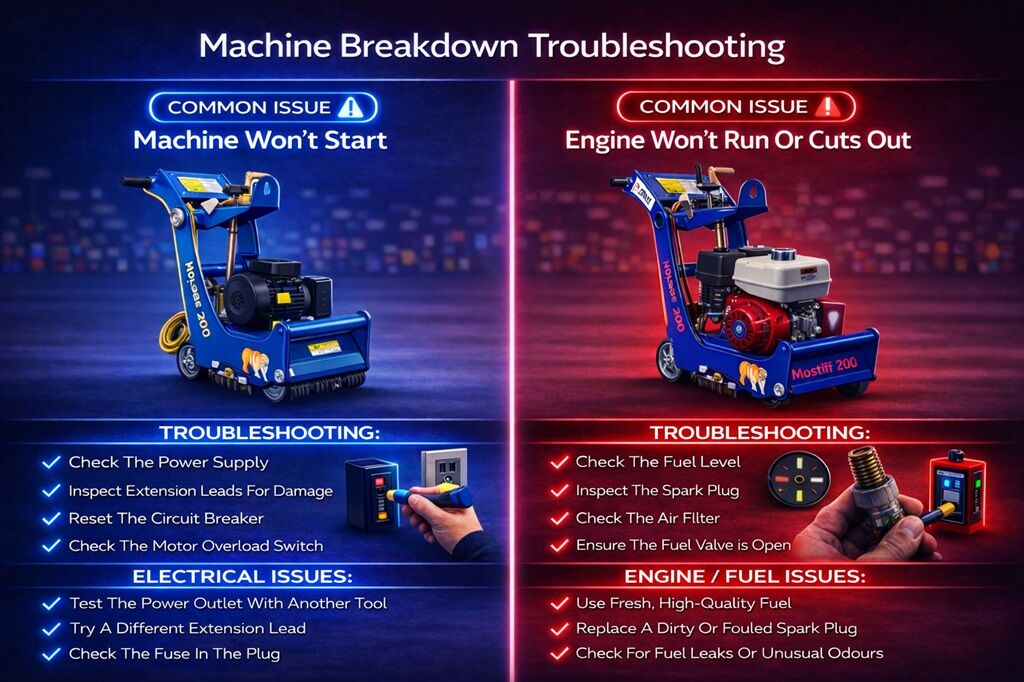

Machine Stopped Working / Broke Down – TROUBLESHOOTING

xxxxxxxxxxxxxxx

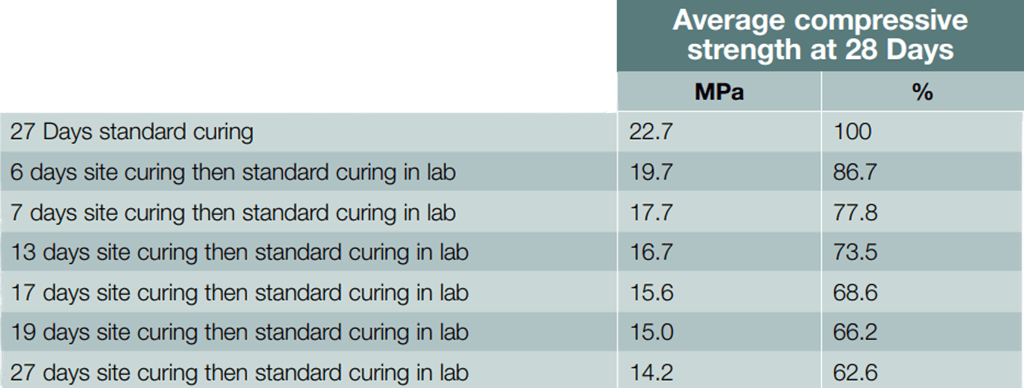

What MPa Means

MPa measures the compressive strength of concrete — essentially how hard/dense it is.

Low MPa (20–25 MPa) – Softer, Easier to Cut Concrete
Medium MPa (25–32 MPa) – Standard Residential/Commercial Concrete Slab
High MPa (40+ MPa) – Very Hard, Slow to Cut, More Aggressive Setup Required

Learn More About What MPa Means In The Concrete Industry

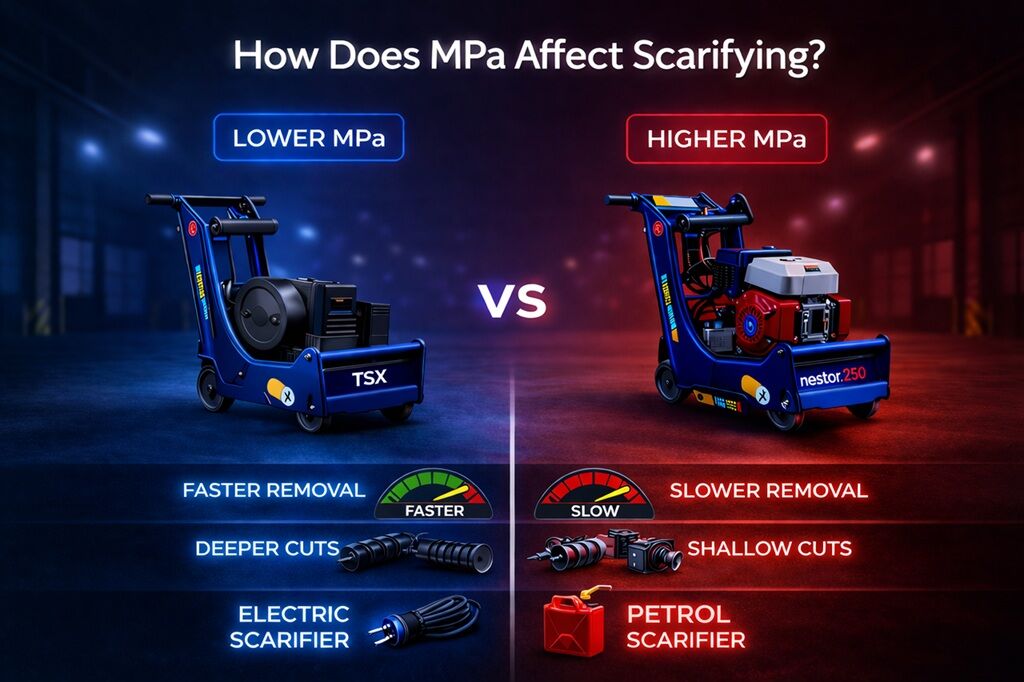

How MPa Affects Scarifying

1. Removal Speed

• Lower MPa → faster removal, fewer passes
• Higher MPa → slower removal, more passes required

2. Cutting Depth Per Pass

• Soft concrete → deeper cuts per pass
• Hard concrete → shallow cuts only (or you’ll stall the machine/damage cutters)

3. Tool Wear (BIG ONE)

• High MPa chews through cutters fast
• You’ll burn through:
  • tungsten carbide flails
  • cutter drums
• This directly increases job cost

4. Machine Requirements

• Low MPa → electric scarifier is usually fine
• High MPa → petrol / heavy-duty unit preferred
  • more torque
  • more weight = better penetration

5. Finish Quality

• Hard concrete often:
  • fractures more aggressively
  • leaves a rougher profile
• Soft concrete:
  • cleaner, more consistent finish

Simple Rules

Lower MPa = Faster, Deeper, Quiter, Less Vibration, Less Wear and Lower Cost
Higher MPa = Slower, Shallower, Louder, More Vibration, More Wear and Higher Cost

Still Unsure? Talk To A Concrete Scarifier Expert

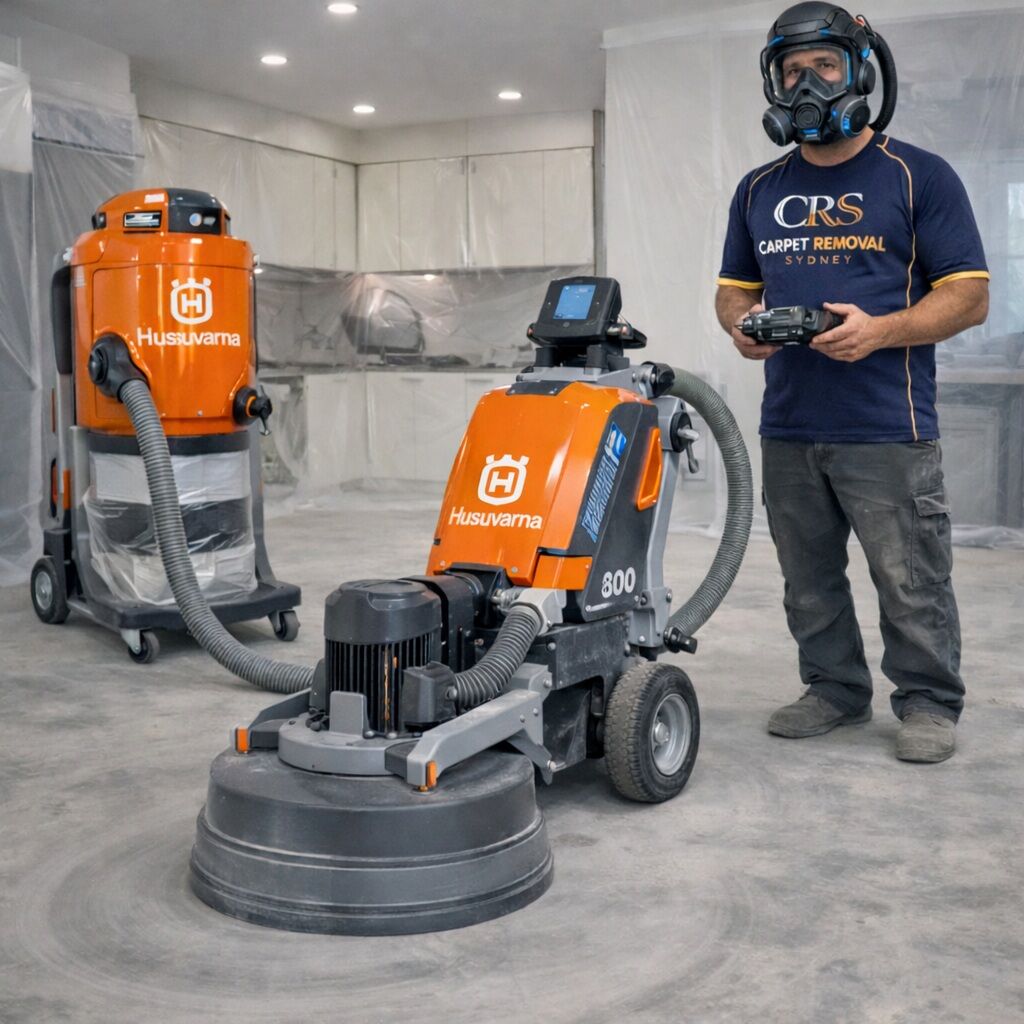

Need Professional Concrete Scarifying In Sydney?
